Selecting an ideal motherboard is important when building or upgrading a PC. The motherboard is your system’s backbone, connecting all components and ensuring they operate seamlessly. Whether you’re a gamer, content creator, or normal user, selecting the right motherboard greatly impacts your computer’s performance, features, and future upgrades.
What is a Motherboard?
A motherboard is a computer’s main circuit board that connects and communicates with all of its hardware components. It serves as the system’s “backbone,” enabling communication between the CPU, memory, storage devices, and peripheral components.

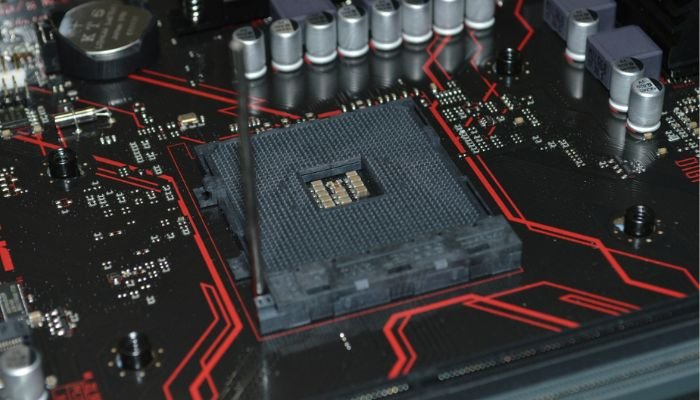

Things To Consider When Selecting A Motherboard
Choosing the right motherboard is one of the most critical decisions when building or upgrading a PC. The motherboard decides which components can be used and has an impact on your system’s overall performance, expandability, and lifetime. Here are the key factors to consider while choosing a motherboard:
1. CPU Compatibility (Socket Type)
The motherboard’s CPU socket must be compatible with your chosen processor (Intel or AMD). Each CPU generation typically uses a specific socket. Always confirm that your chosen motherboard supports the CPU model and generation you plan to use.
- Intel uses sockets like LGA 1700 (12th & 13th Gen CPUs).
- AMD uses AM5 (Ryzen 7000 series) or AM4 (older Ryzen processors).
2. Size of the Motherboard
Ensure the motherboard form factor fits inside your PC case.
ATX: Full-size motherboards with the most expansion slots and features. Ideal for high-performance systems.
Micro-ATX: A more compact version of ATX, with fewer slots but generally still capable for most users.
Mini-ITX: A compact motherboard designed for small form factor builds. It has limited expansion options but is great for space-saving builds.
3. Chipset
The chipset determines what features the motherboard supports, such as PCIe lanes, USB ports, and overclocking. Choose a chipset based on your needs, whether you want overclocking, more USB ports, or additional PCIe lanes.
Intel Chipsets: Higher-end chipsets like Z790 support overclocking, while mid-range chipsets like B760 are more budget-friendly with fewer features.
AMD Chipsets: X670 offers high-end features like overclocking and better PCIe lane support, while B650 is more affordable.
4. RAM Compatibility
Supported RAM Type: Most modern motherboards support DDR4 or DDR5 memory, but they are not interchangeable. Check the type your motherboard supports.
Memory Speed: Some motherboards support higher RAM speeds (measured in MHz), which can improve system performance, especially in gaming or content creation.
Number of RAM Slots: Check how many RAM slots the motherboard has and the maximum RAM it supports. More slots give you room for future upgrades.
5. Expansion Slots (PCIe)
PCIe Slots: These are used for connecting graphics cards, network cards, or storage expansion cards. Ensure the motherboard has enough PCIe x16 slots if you plan to use multiple GPUs or other expansion cards.
PCIe Version: Look for PCIe 4.0 or PCIe 5.0 for faster data transfer speeds, especially if you’re building a gaming or high-performance PC.
6. Storage Options
M.2 Slots: These are used for NVMe SSDs, which offer much faster speeds than traditional SATA drives. Check how many M.2 slots are available and if they support PCIe 4.0 or PCIe 5.0 for high-speed SSDs.
SATA Ports: These are used for traditional HDDs or SATA SSDs. Make sure the motherboard has enough SATA ports if you’re planning to use multiple storage drives.
7. Connectivity and Ports
USB Ports: Look for the number and type of USB ports, especially if you need fast connectivity for external devices. USB 3.2 Gen 2 and USB-C offer faster transfer speeds.
Ethernet: Some motherboards offer 2.5Gbps or 10Gbps Ethernet, which is important for fast networking. Others may also come with built-in Wi-Fi and Bluetooth.
Audio: High-end motherboards come with better audio chipsets, which are ideal if you need higher-quality sound without a dedicated sound card.
Thunderbolt: Some high-end motherboards feature Thunderbolt ports for ultra-fast data transfer and connectivity with modern devices.
8. Power Delivery and Overclocking Support
Power Phases: A motherboard with good power delivery (higher phase count) is essential if you plan to overclock your CPU or GPU. This ensures stable and efficient power delivery under heavy loads.
Overclocking Support: If you want to overclock, ensure your motherboard’s chipset supports it (e.g., Z series for Intel or X series for AMD).
9. BIOS and UEFI Features
The motherboard’s BIOS or UEFI software allows you to configure settings like RAM timings, CPU overclocking, and boot options. Make sure the BIOS is user-friendly and supports features like automatic overclocking, secure boot, and fast boot.
10. Cooling and Fan Headers
Fan Headers: Ensure the motherboard has enough fan headers to support your cooling setup. Some motherboards also include support for liquid cooling.
Heatsinks: Higher-end motherboards come with VRM heatsinks or M.2 SSD heatsinks, which help maintain stable performance during heavy loads.
11. Aesthetics and Build Quality
RGB Lighting: Some motherboards come with built-in RGB lighting or RGB headers for external lighting control, which can enhance the aesthetics of your build.
Build Quality: High-quality materials and better cooling designs (such as aluminum heatsinks) improve durability, especially for high-performance builds.
12. Budget
Motherboards can range from budget-friendly (~$100) to high-end models ($400+). Identify your budget and find a motherboard that offers the right balance of features and performance. While a budget motherboard might be cheaper, investing in a mid-range or high-end model could give you more headroom for future upgrades and better overall performance.
Also Read:
- 100+ Cool Gamertags – How To Create A Unique Gamer Tag
- How To Fix Steam Broadcast Not Working With Easy Steps
Interesting Motherboard Facts
First Motherboard Was Released in 1981: IBM developed the first true motherboard, originally called a “planar board,” for the IBM Personal Computer in 1981. This set the foundation for the design of modern PCs.
First Motherboard Had No Slots: The original IBM PC motherboard didn’t have dedicated slots for RAM or storage. All components were soldered directly to the board!
Motherboards Used to Be Called “Planar Boards”: The term “motherboard” was not used until later in the history of computing. Early computers like the IBM PC referred to the central board as a “planar board.”
Conclusion
Motherboards are far more than a simple circuit board. They serve as the foundation of your PC, determining its capabilities, performance, and upgradeability. Understanding their features and components can allow you to make better judgments while building or updating a computer.
